Mud Sucker
Diaphragm Pumps
.jpg)
Built to Perform in the Toughest Conditions
Wastecorp’s Mud Sucker diaphragm pump line delivers powerful, customizable pumping solutions for industrial, municipal, and commercial applications. Designed and manufactured in North America, these pumps are engineered to handle everything from sludge and slurry to petrochemicals, food products, and wastewater. Available in electric, engine-driven, air-operated, and hydraulic configurations—with single or double diaphragm options—Mud Sucker pumps offer flow rates up to 280 GPM and a wide range of sizes from 1” to 6”. Whether you need a portable, stationary, or custom-built unit, our versatile product line provides the reliability and performance you need, backed by over 30 years of proven expertise.

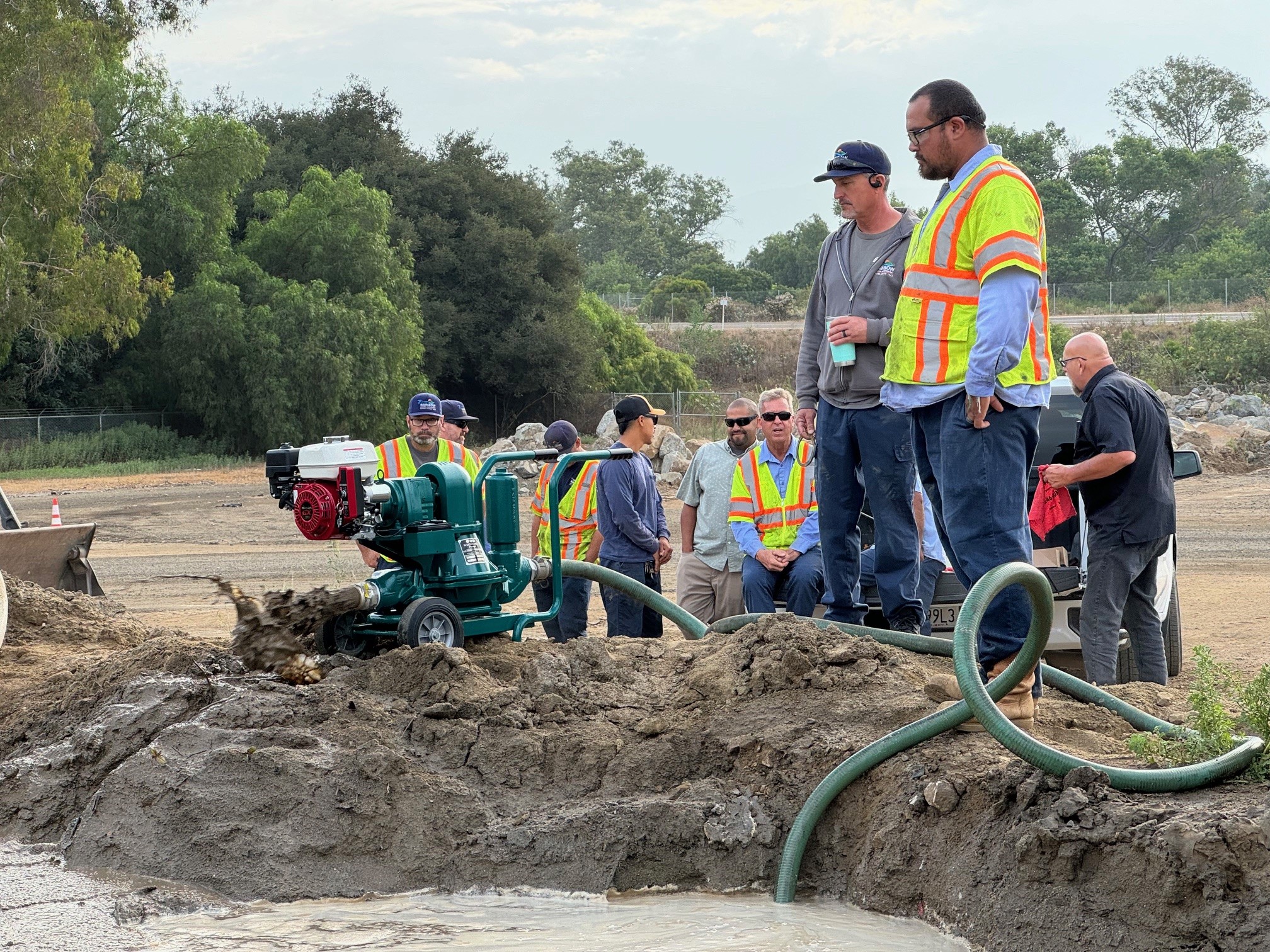

-field-photo2.jpg)

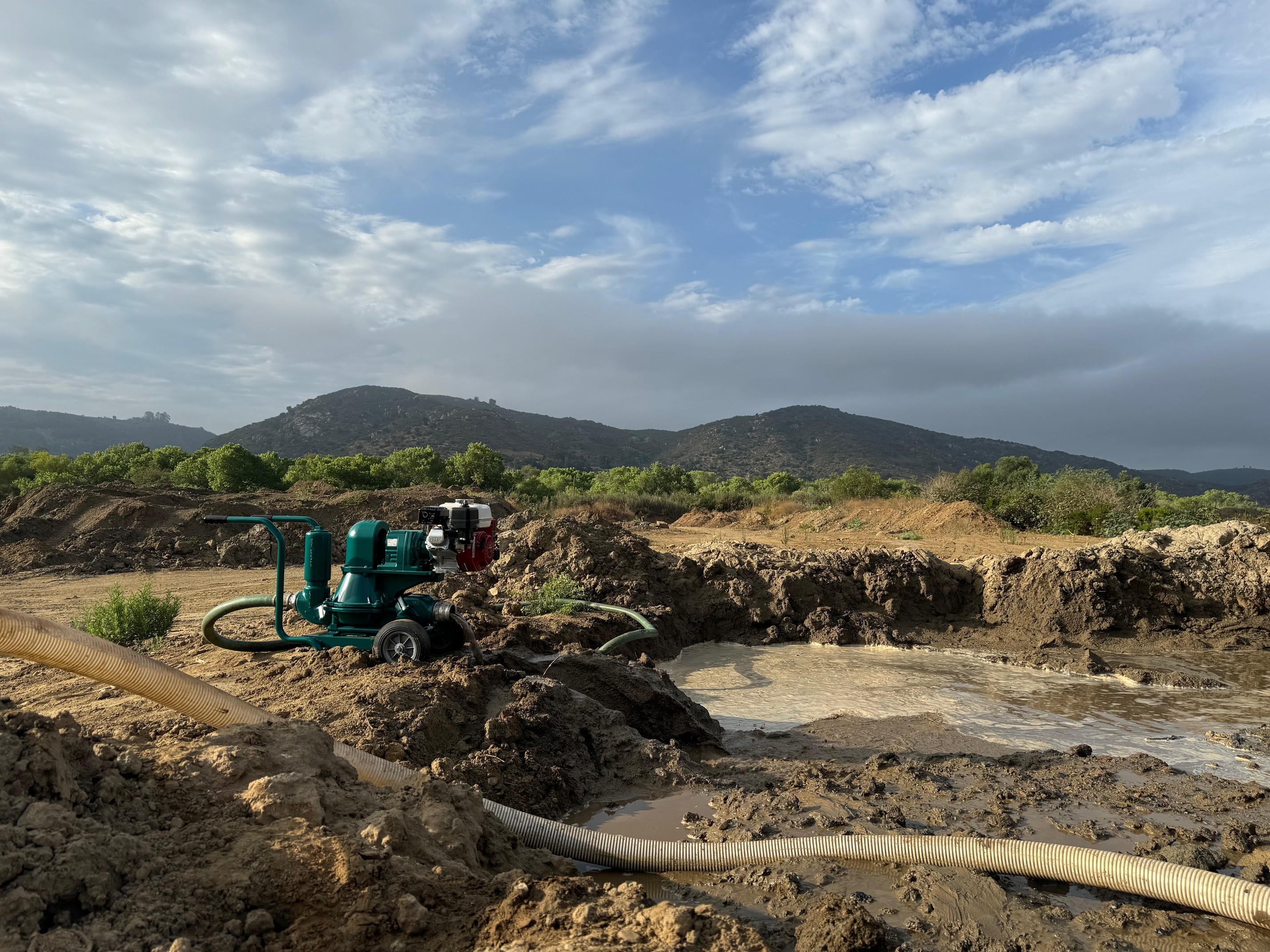

-field-photo3.jpg)
Drive Options
Electric
Choice of single-phase, three-phase electric, and explosion-proof motors.
Engine
Ideal for high-pressure tasks in rugged environments
AOD
Air-operated. Safe for flammable and corrosive fluid transfer
Hydraulic
Handles very high pressures with built-in safety features.
Flapper Valve Models
| Suction/Discharge Size | Number of Diaphragms | Max. Flow Capacity | ||
|---|---|---|---|---|
| Mud Sucker® 2FAC | 2" | 1 | 50 GPM | |
| Mud Sucker® 3FA | 3" | 1 | 80 GPM | |
| Mud Sucker® 3FAC | 3" | 1 | 80 GPM | |
| Mud Sucker® 4FAC | 4" | 1 | 110 GPM | |
| Mud Sucker® 2FAC-DD | 2" | 2 | 40 GPM | |
| Mud Sucker® 3FA-DD | 3" | 2 | 160 GPM | |
| Mud Sucker® 3FAC-DD | 3" | 2 | 160 GPM | |
| Mud Sucker® 4FAC-DD | 4" | 2 | 300 GPM | |
| Mud Sucker® 6FAC-DD | 6" | 2 | 325 GPM |
Ball Valve Models
| Suction/Discharge Size | Number of Diaphragms | Max. Flow Capacity | ||
|---|---|---|---|---|
| Mud Sucker® 2B | 2" | 1 | 20 GPM | |
| Mud Sucker® 3B | 3" | 1 | 80 GPM | |
| Mud Sucker® 4B | 4" | 1 | 110 GPM | |
| Mud Sucker® 2B-DD | 2" | 2 | 40 GPM | |
| Mud Sucker® 3B-DD | 3" | 2 | 160 GPM | |
| Mud Sucker® 4B-DD | 4" | 2 | 220 GPM |
Flapper Valve or Ball Valve?

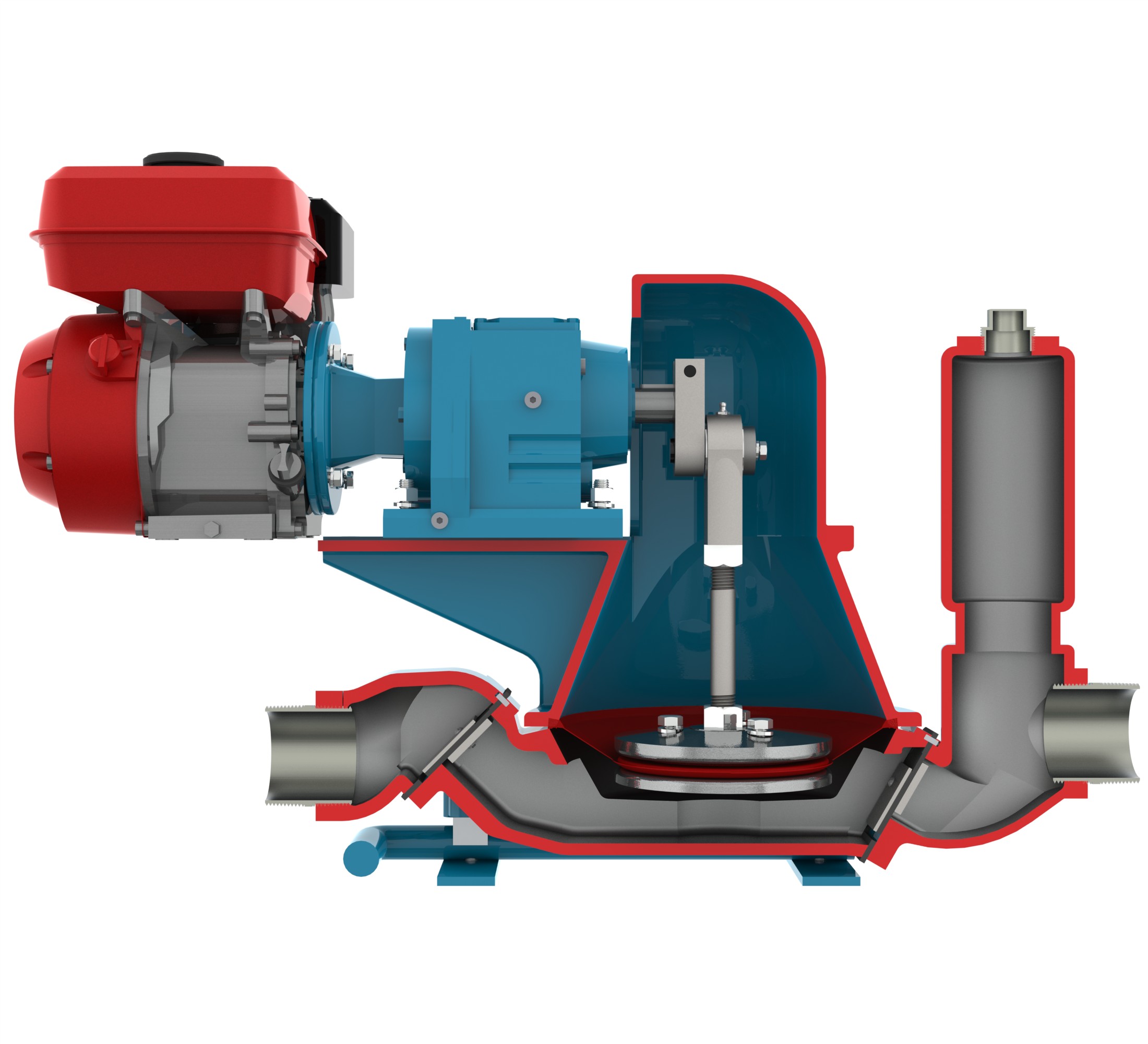

Flapper Valve
Designed for handling large solids and viscous fluids, flapper valves provide a clear, unobstructed flow path ideal for heavy-duty pumping applications.

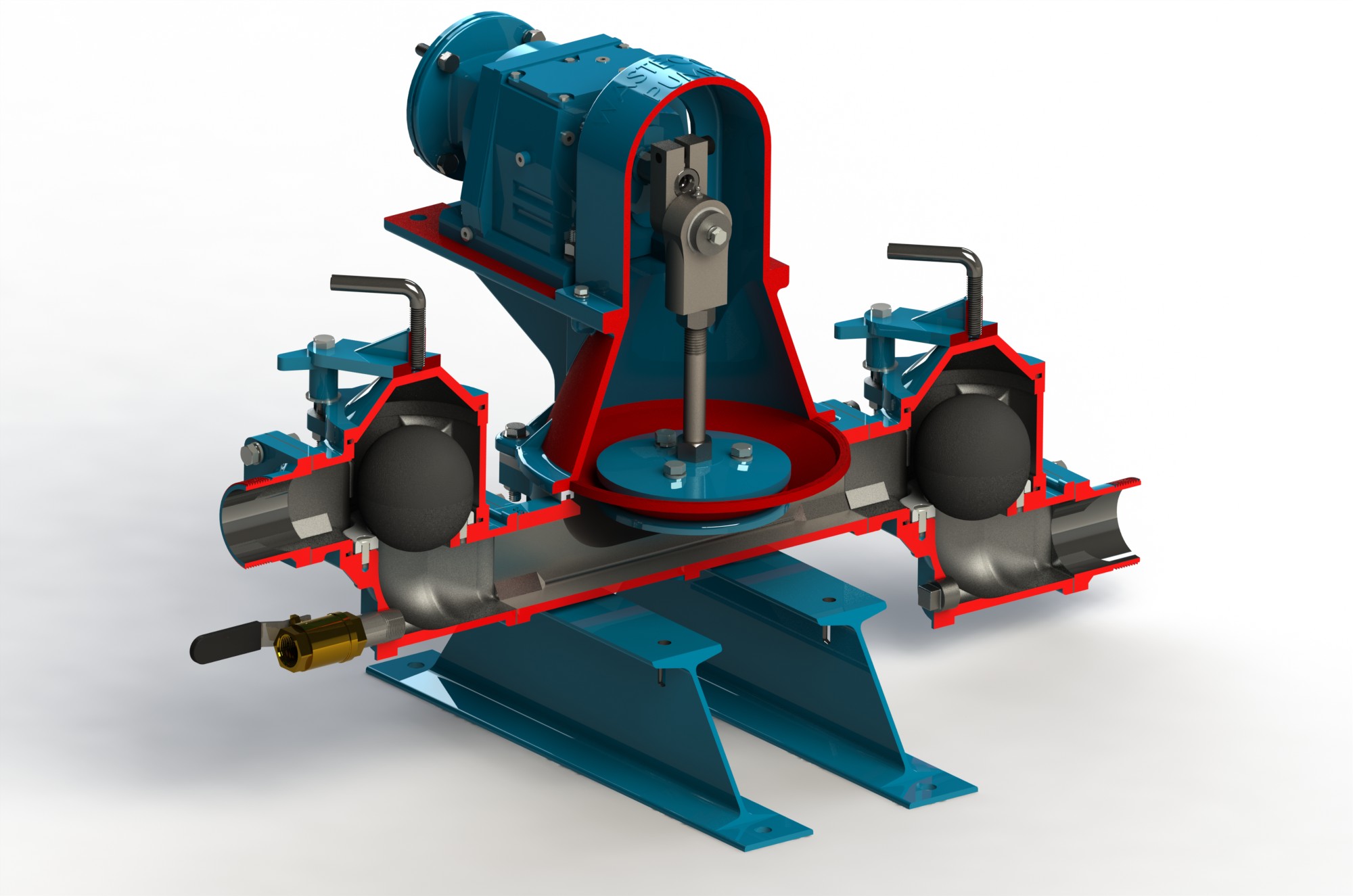

Ball Valve
Engineered for precise sealing and smooth operation, ball valves are ideal for general-purpose pumping where reliability and efficiency are key.
